- The product description
- The main function
- The basic parameters
1. Basic functions
1. Directly prepare pure water that meets the standards from tap water or groundwater;
2. Water shortage protection;
3. Shut down when the water is full;
4. The pre-filter is self-cleaning;
5. On-line monitoring function of water quality;
6. The system automatically cleans when the machine is turned on and off to extend the service life of the machine;
2. Product features:
1. The effluent water quality meets the national direct drinking water standards, and meets the water standards for the food and beverage industry;
2. Simple installation, convenient use, one-key operation;
3. Alarm function for unqualified water quality;
4. Integrated design, less floor space.
5. Using RO reverse osmosis process, the cost of using consumables is low.
Remarks:
1. Model description: such as LT-RO1500GPD, LT: Brand: Liter Industry, A: represents first-level reverse osmosis, -1500 is 500GPD per hour, P/F is made of PVC for pipes, and F is made of all stainless steel,- 1 is the factory version 1.0 standard;
2. This selection table is a conventional 10T/H equipment selection table, and the equipment larger than this water output will be customized according to the engineering machine;
3. This equipment can be made of FRP material and 304 stainless steel material;
4. The external dimensions in the selection table are for reference, and the suitable size can be customized according to the specific location of the user. The data is length X width X height; the size of the water tank is not included in the size;
5. In this selection table, explosion-proof pure water equipment can be customized according to customer requirements;
6. The equipment voltage exceeds the rated requirements, and 110V or 200V voltages can be customized according to user needs;
The equipment model or technical modification will not be notified separately, and the customer service of the manufacturer shall prevail before leaving the factory.
3. Application scope of pure water equipment
1. Food and beverage, hotel water, paint, painting industry;
2. Dishwashing detergent preparation industry;
3. Fine chemicals, hardware cleaning, valve industry cleaning and testing industry;
4. Deionized pure water systems for other industries that meet water quality.
5. Pure water equipment for ultrasonic cleaning, cleaning products and objects.

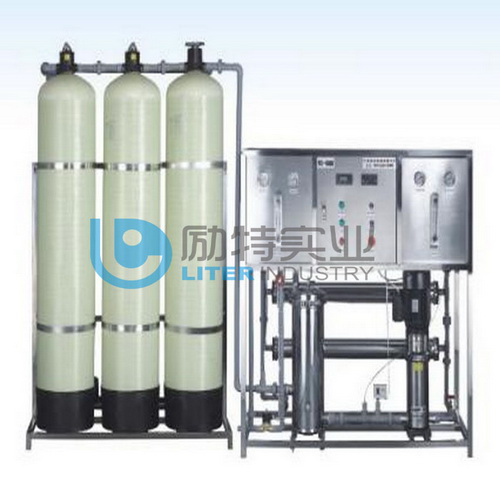

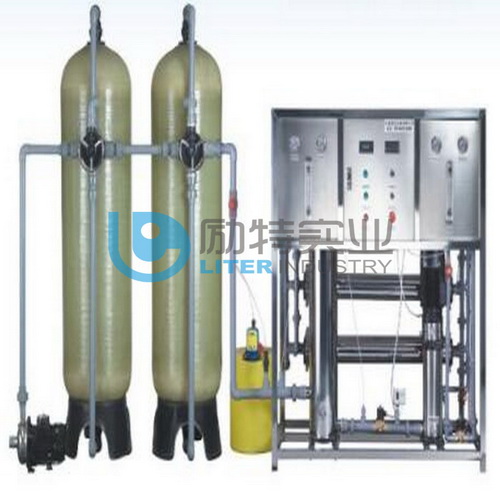

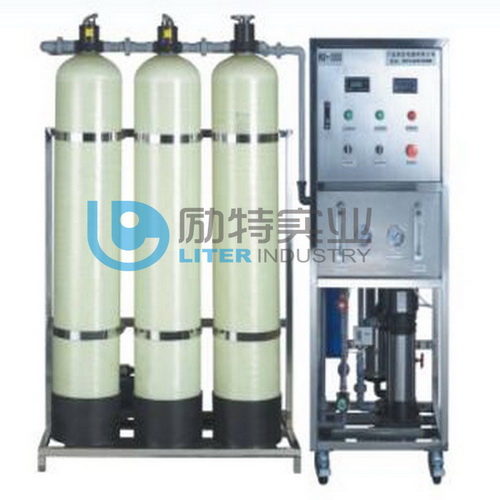

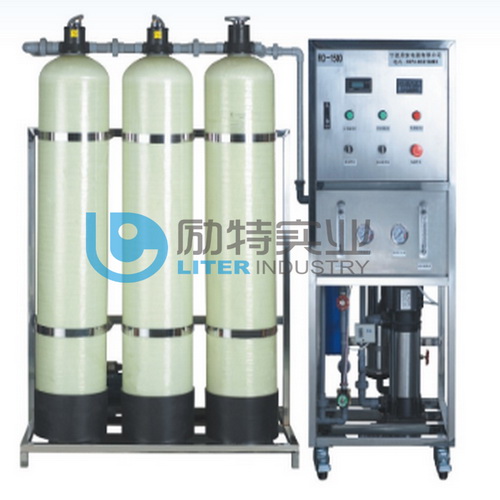

The drinking pure water preparation device is composed of a pretreatment part, a reverse osmosis system and a fine treatment, and adopts a unit combination structure. The purpose is to reduce the equipment footprint, facilitate transportation and on-site installation and commissioning. It has the advantages of small footprint, fast installation, beautiful appearance, convenient operation and maintenance, etc. The equipment parts are made of Ocr18Ni9 (304) stainless steel, and the low pressure part of the pipeline is made of ABS engineering. Plastic and high-pressure parts are made of high-quality stainless steel. The main components (membranes, pumps, meters, etc.) are all provided by well-known foreign professional manufacturers, and the performance of the whole machine has reached the level of the same period abroad. Machine functions: RO membrane automatic and manual flushing, automatic shutdown of pure water at high water level, automatic startup at low water level, multi-stage pump water shortage protection, loss of pressure, undervoltage, overcurrent, short circuit, phase failure, and leakage protection.
Automatic carbon filter: 1 set of scale inhibitor dosing system or water softener: 1 set of 5 micron security filter: 1 set of designed inlet water conductivity: <300us/cm RO membrane filter: 1 set of pure water tank and supply Pump optional water source utilization rate>65% Water quality monitoring table: 2 designed water sources: tap water or groundwater Rated water inlet pressure: 0.2-0.5MPA Working pressure range: 0.6-1.5MPA On-line conductivity of the outlet water: <5us/cm fully automatic Carbon filter: 1 set of scale inhibitor dosing system or water softener: 1 set of 5 micron security filter: 1 set of designed inlet water conductivity: <300us/cm RO membrane filter: 1 set of pure water tank and water supply pump selection Utilization rate of water distribution source>65% Water quality monitoring meter: 2 sets Operating temperature: 10-40℃ Water quality unqualified alarm: 1 set of automatic control system: 1 set of supporting instrument protection device: 1 set
